HydroCart Max - DC

Injector watering cart with an integrated DC inverter

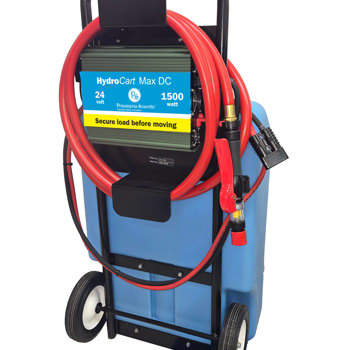

The back of an HydroCart Max DC/AC

The HydroCart Max - DC is the next evolution in maximizing battery watering efficiency alongside our industry-leading Water Injector System.

This sturdy 20 gallon (75.7 liter) high density polyethylene tank easily transports water to your batteries. Simply fill the tank from any available deionized water source, such as our HydroPure Deionizer. The use of deionized water is strongly recommended when filling industrial batteries.

The HydroCart Max - DC maneuvers like a hand truck and features a built-in DC inverter, simplifying the filling process and increasing efficiency. Just connect it to a 24 VDC battery from a forklift or pallet jack for unmatched flexibility in high speed battery watering.

When the switch is turned on, the pump is activated. Connect to the Water Injector System™ and activate the Instant Valve Pro™. A flow indicator will tell you when all the Injector valves have shut off and it is time to disconnect.

The DC Inverter outputs 110V AC power at 1500 watts and has an over 90% energy efficient rating.

The submersible pump mounted inside the tank delivers all the pressure and volume required by the Water Injector System™.

This HydroCart Max - DC is also compatible* with the Stealth Watering System and the Watering Gun.

* Additional adaptors may be required.

System Exposure Temperature: 35° to 160°F (2° to 71°C)

Power Source: Customer Supplied 24 VDC Battery

DC Power Cord Length: 5 ft. (1.5 m) 4 AWG Black SB175

Output Hose Size: 1 in (2.54 cm)

Output Hose Length: 15 ft (4.6 m)

Minimum Water Output: 8 gpm @ 25 psi

Weight: 64 lb (29.02 kg)

Product Height: 40.6 in (103.1 cm)

Product Length: 19.5 in (49.43 cm)

Product Width: 19.7 in (50.0 cm)

Capacity: 20 gal (75.7 l)

Range: 15 ft (9.1 m)

Wheel size: 8 in (20.3 cm)

Wheel Type: Ball Bearing

Horse Power: 3/4 H.P.

Notes: Used for filling the Water Injector System™

Part: INJ-739
