Step Guard

The Step Guard offers unprecedented heavy-duty low-level protection that prevents injuries and damage in vehicle charging areas, goods holding areas and pedestrian walkways.

The dangers in these areas of the workplace can lead to pedestrian injuries, damaged infrastructure and costly downtime.

Perfect for these applications: Warehouses

Why Step Guard

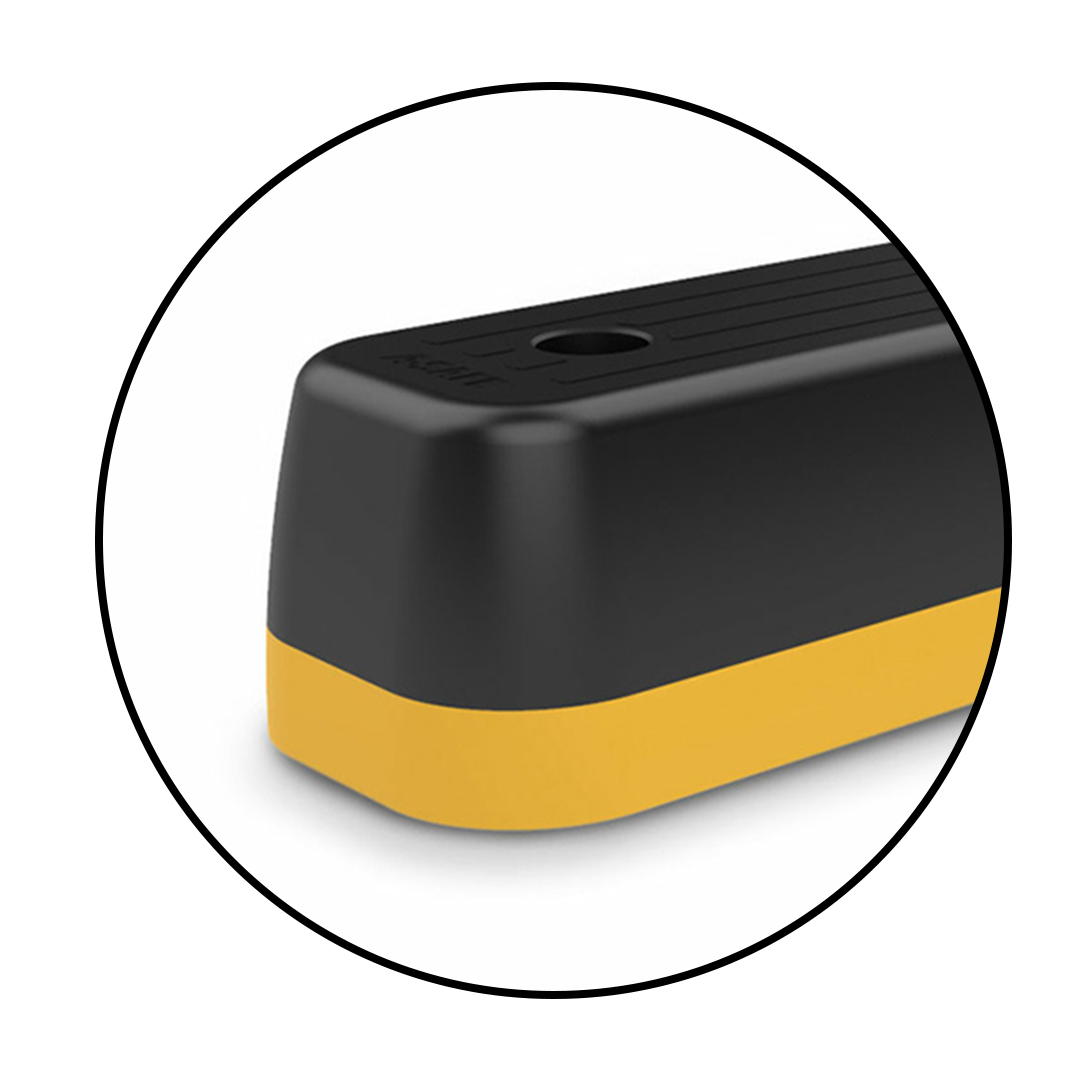

Twin Layered Monoplex Product

It offers a softer upper layer which dissipates energy whilst the lower harder layer provides rigidity around the fixing holes. This ensures the Step Guard remains strong under impact and distributes energy across the product, reducing the risk of damage and minimises the risk of fixings pulling out of the ground.

New Material Innovation

Monoplex is a new material innovation that is revolutionising impact protection in industrial workplaces worldwide. Precision-engineered and produced in the UK using state-of-the-art materials and manufacturing technology, Monoplex safety products offer unprecedented levels of versatility, durability, and performance across multiple impacts.

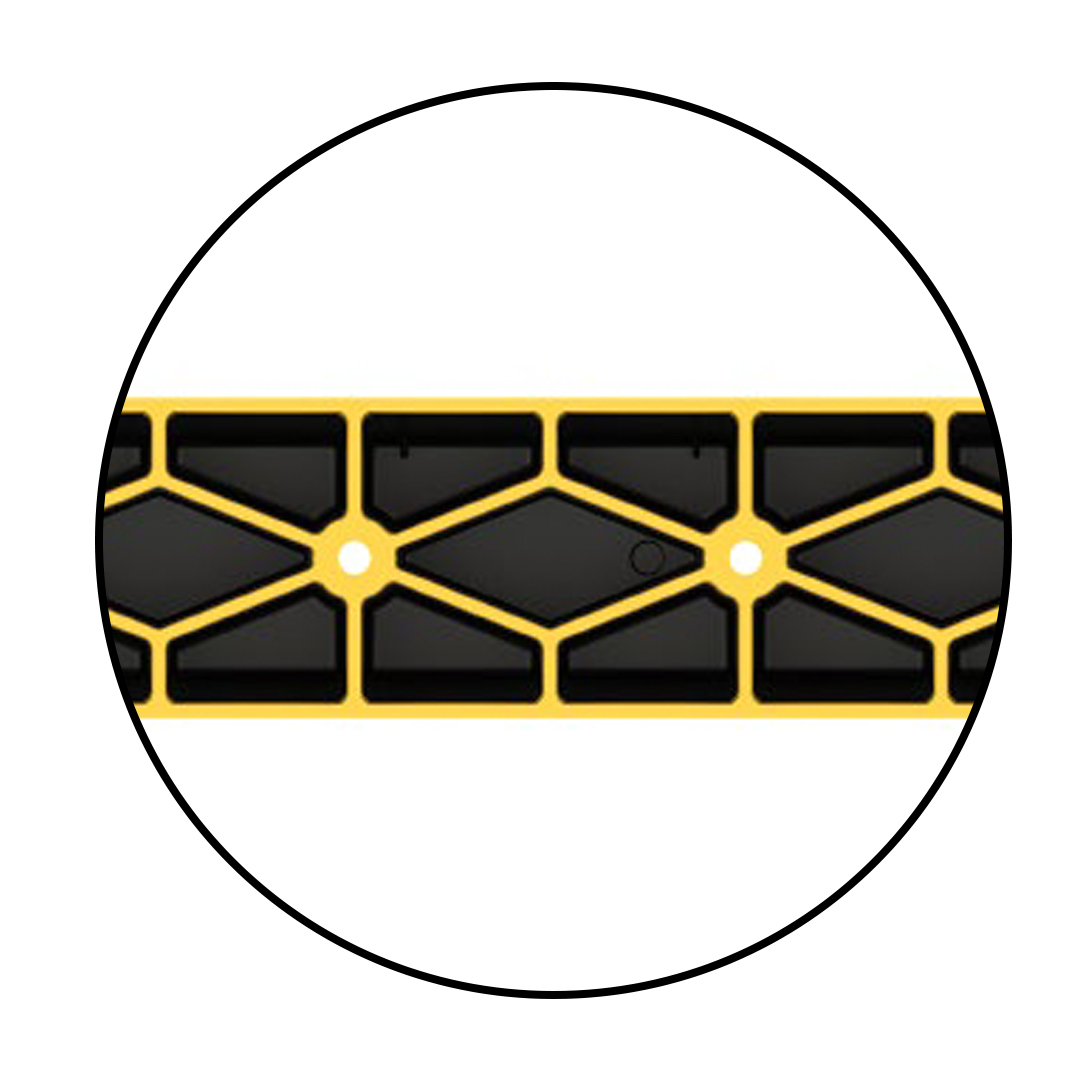

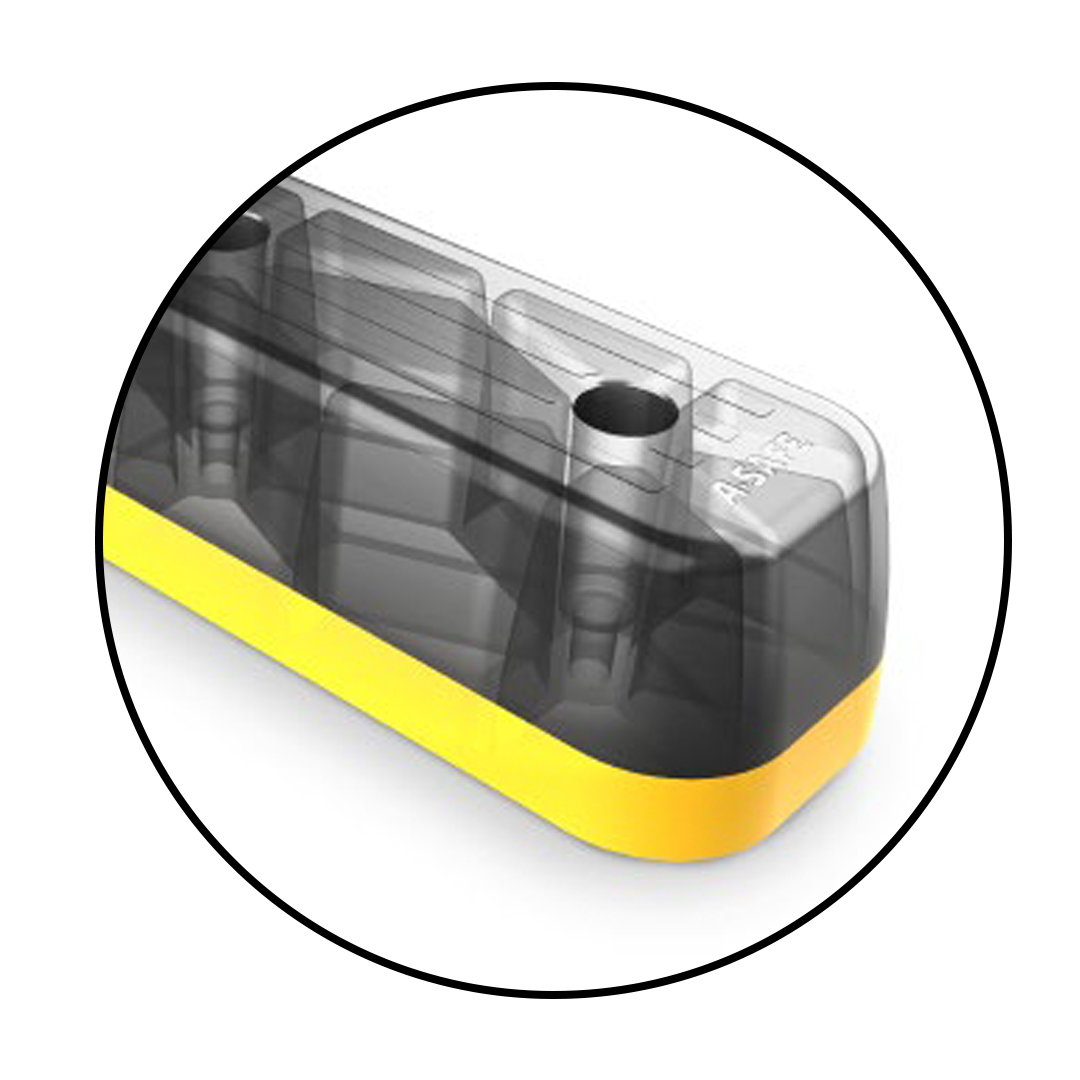

The Supporting Internal Rib Structure

Heavy duty vehicles operating within shared workspaces such as charging points require products which can withstand high impacts. The supporting internal rib structure provides strength throughout the product to ensure the Step Guard doesn’t crumple under impact and can return to its original form.

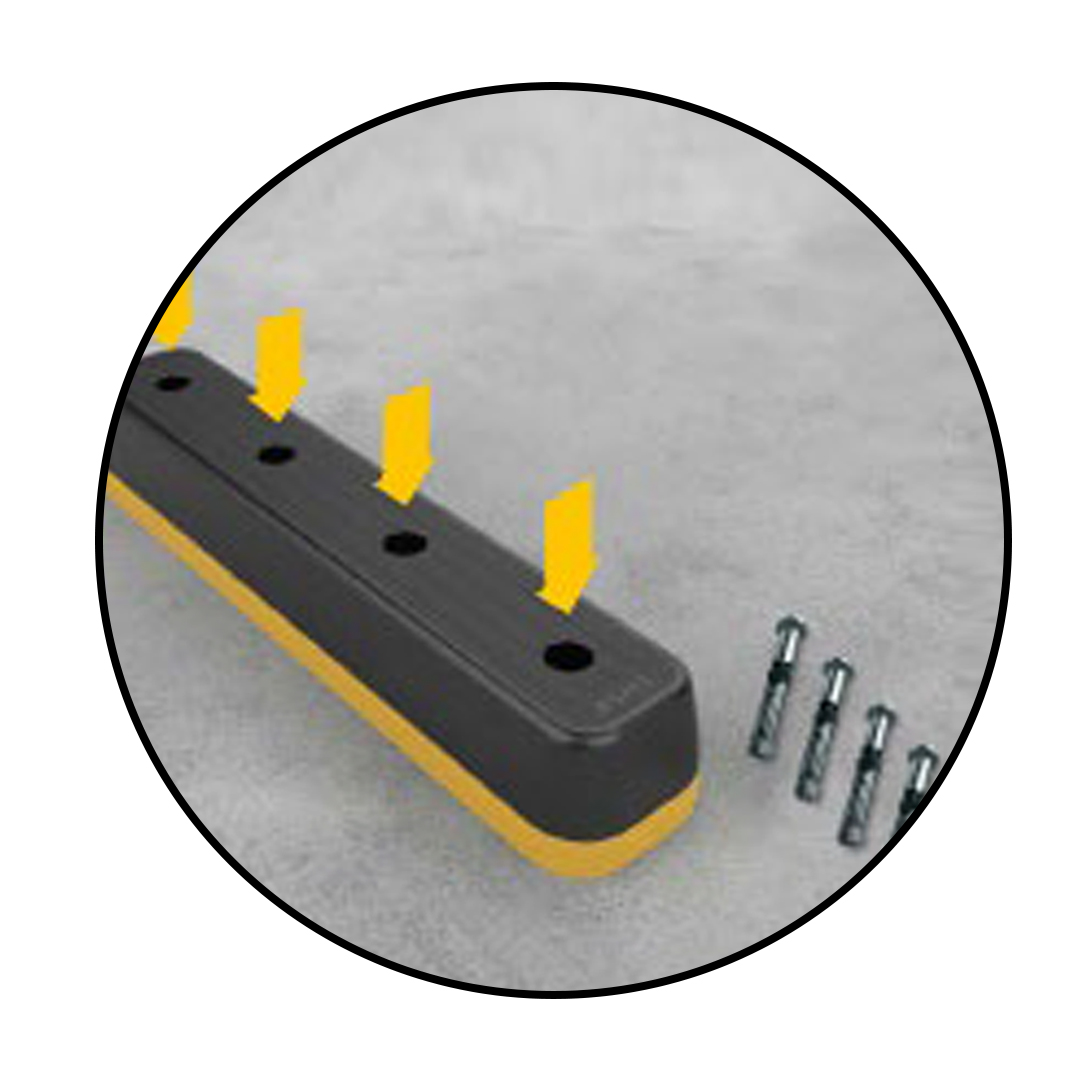

Ease of Installation

The Step Guard is easy to install with a maximum of 4 x M16 – OD24mm Bolt Type Head fixings (1200mm version) per Step Guard. This means that the product can be installed or replaced quickly with a minimum amount of disruption on site.

Technical Specifications

Product Weights

Step Guard 1200
18kg / 40lbs
15,800 Joules

Step Guard 900
14kg / 31lbs
15,800 Joules

Step Guard 600
9kg / 20lbs
10,400 Joules

Material Properties

Monoplex™

Temperature Range

5°C to 40°C

Ignition Temperature

> 400°C

Flash Point

350°C to 370°C

Toxicity

Not Hazardous

Chemical Resistance

Excellent - ISO/TR 10358

Weathering Stability (Grey Scale)

5/5*

Light Stability (Blue Wool Scale)

7/8**

Static Rating (Surface Resistivity)

1015 - 1016 Ω

* Weathering scale 1 is very poor and 5 is excellent
** Light stability scale 1 is very poor and 8 is excellent
