iFlex Pedestrian Barrier 3 Rail

iFlex™ Pedestrian Barrier 3 Rail is designed to segregate and safeguard pedestrians from moving vehicles and potential workplace hazards. It is suitable for both indoor and outdoor use.

Ideal for facilities with lightweight vehicles operation or if there is a risk of shallow angle impact accidents.

Perfect for these applications: Warehouses

Why iFlex Pedestrian Barrier

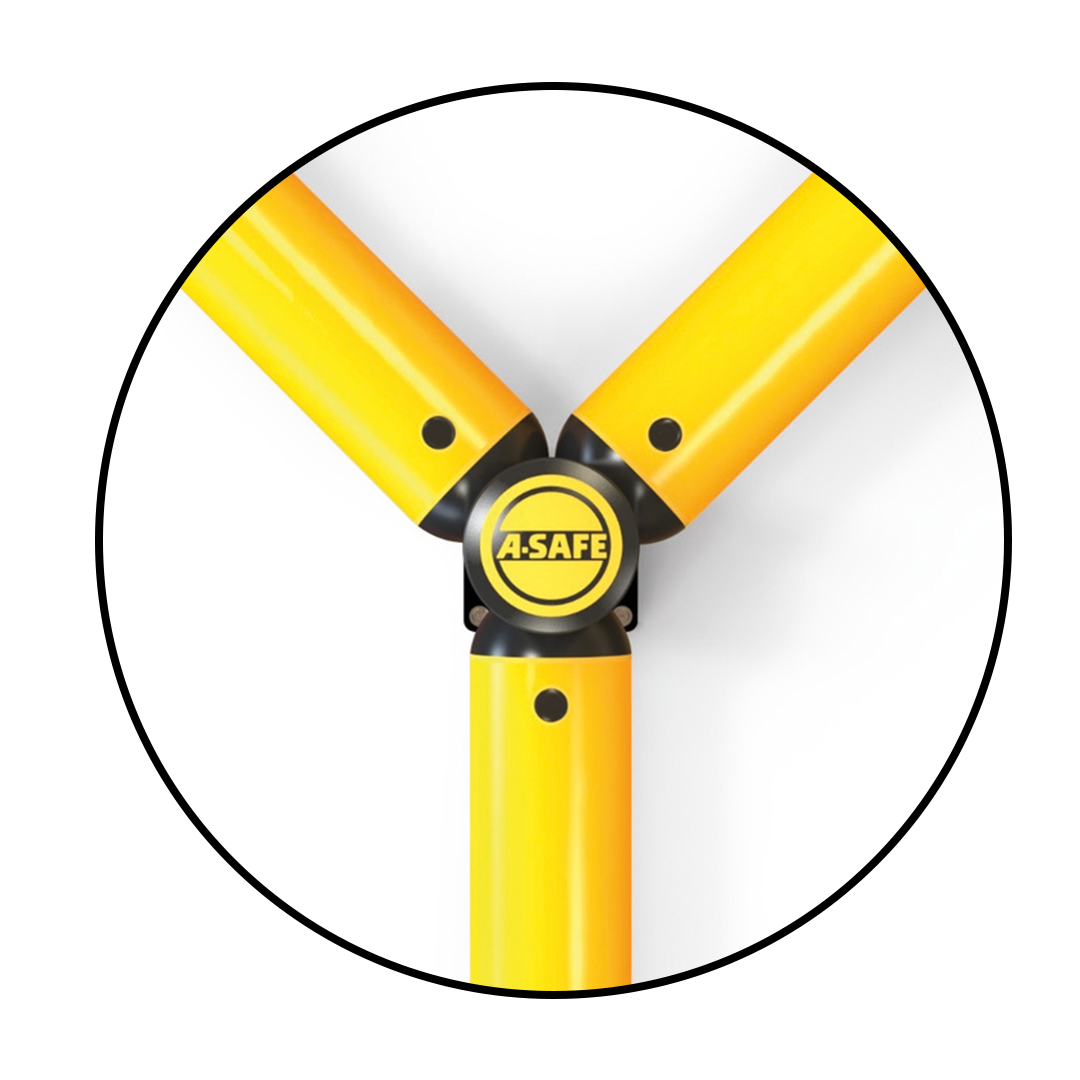

Multi-Directional System

It ensures a streamlined fit into any operation and the removal of hard angles.

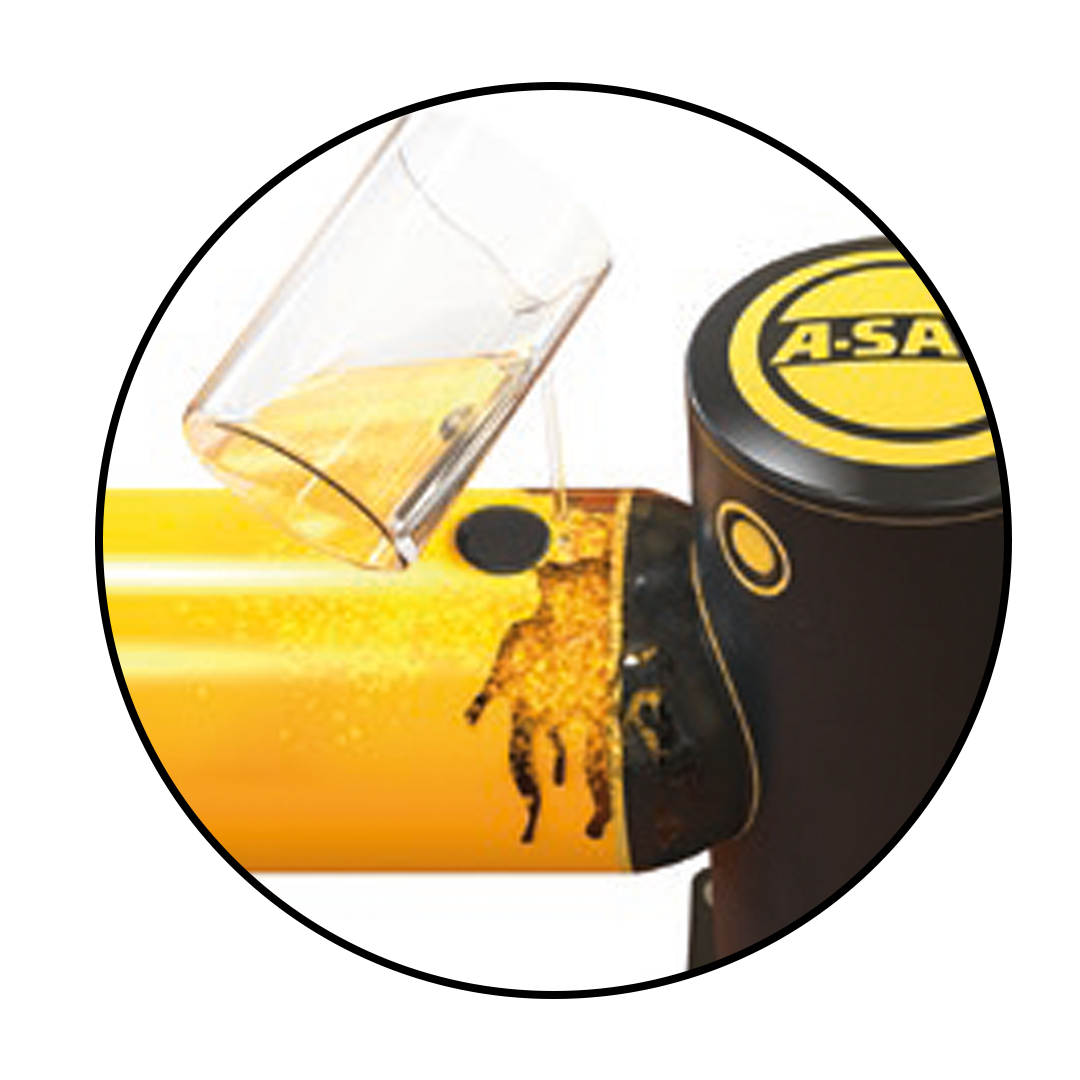

Ultra-low Maintenance Material

Chemical and water resistant material. Non-corrosive, non-scratch and self coloured, so no repainting, rusting, flaking or corrosion.

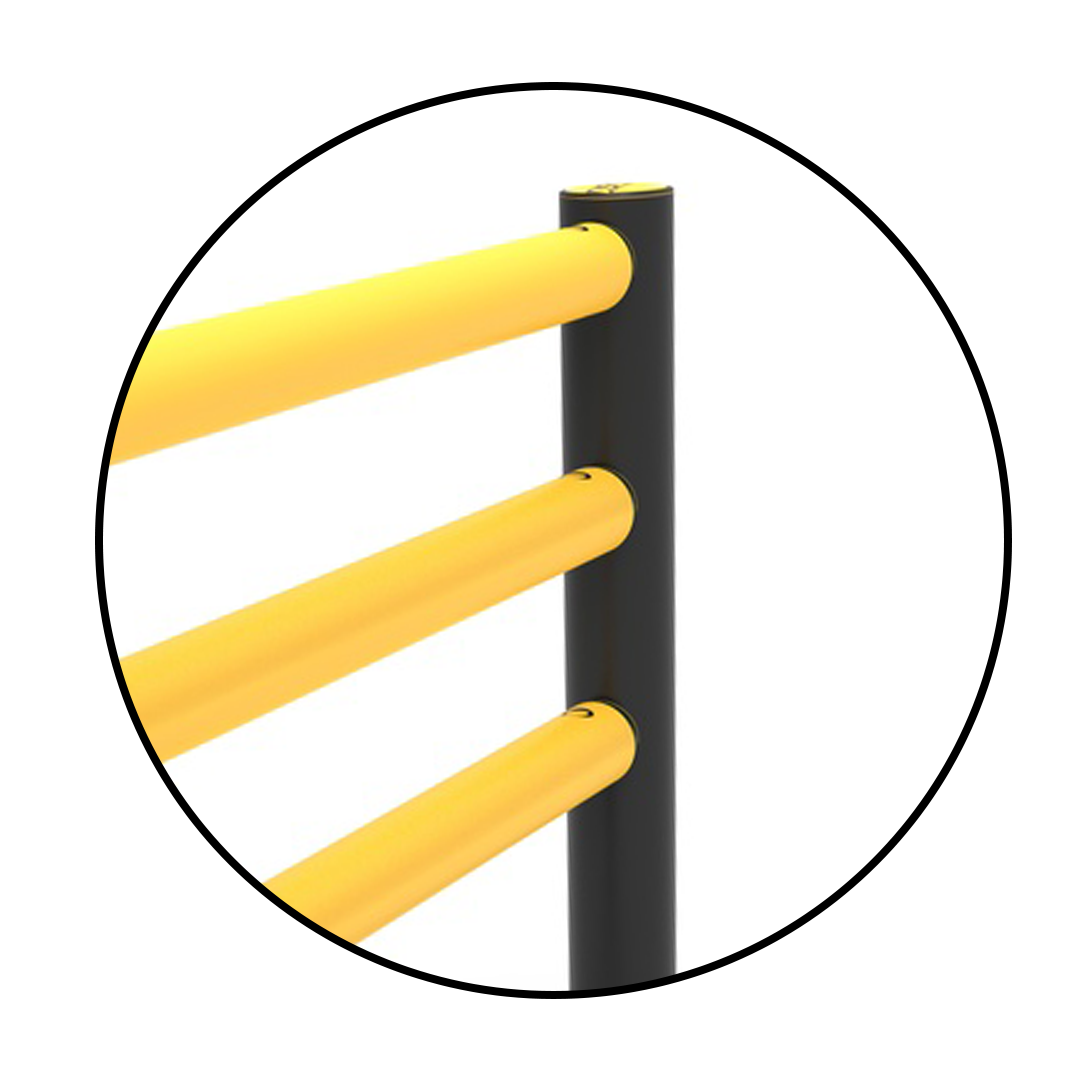

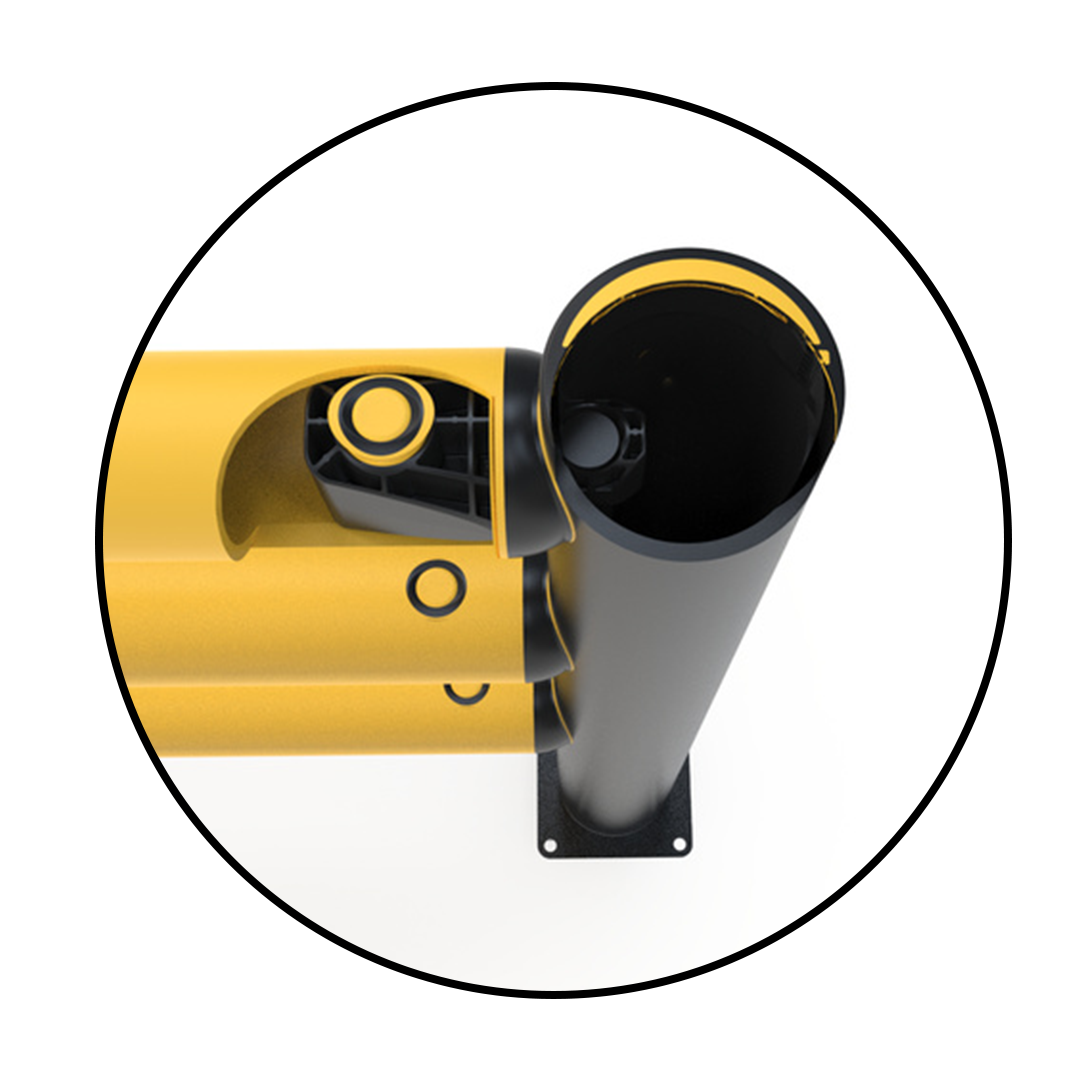

Exclusive Modularity

Allows rails and posts to be replaced in-situ without removing adjacent barrier sections.

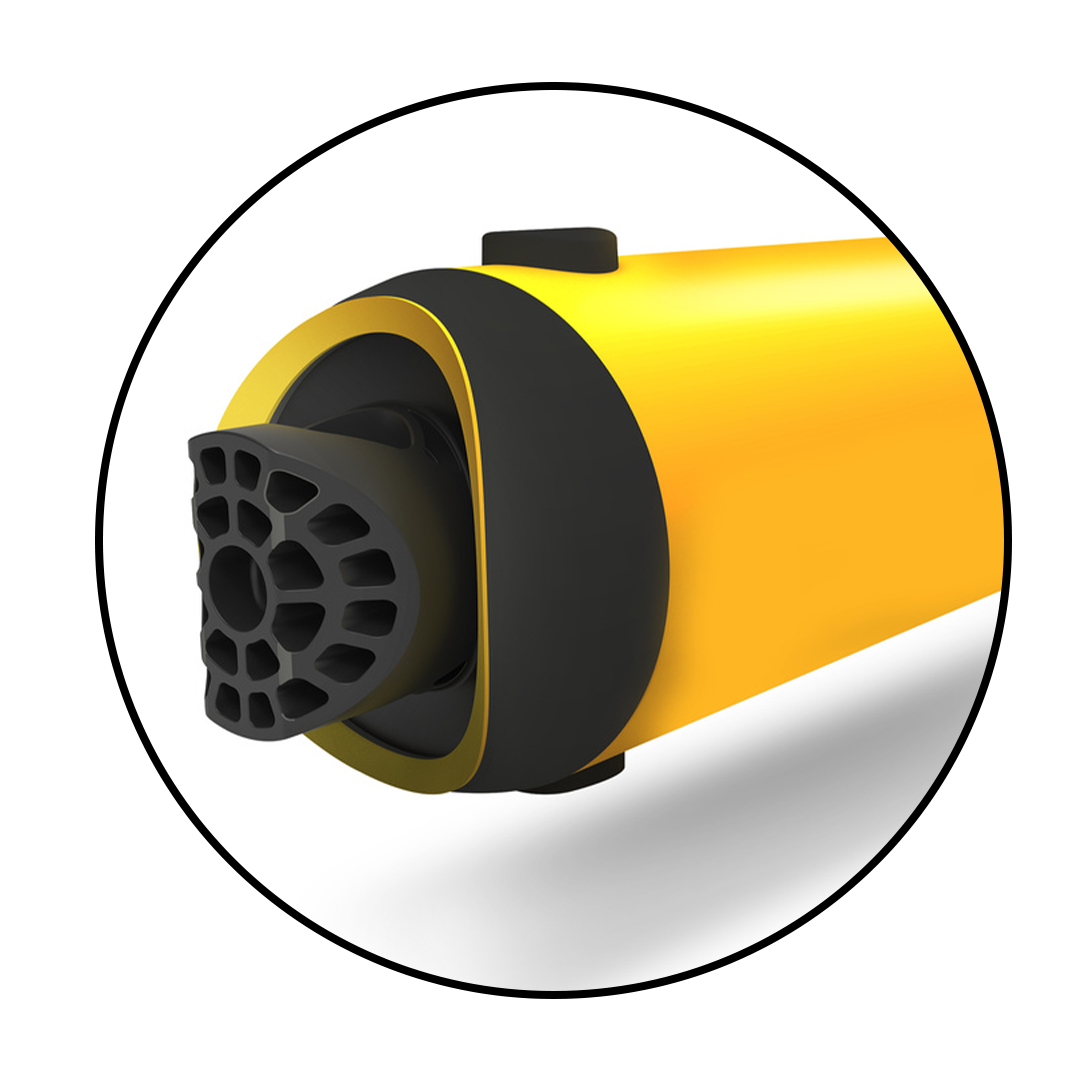

Fully-Sealed Design

Reduce the risk of water ingress.

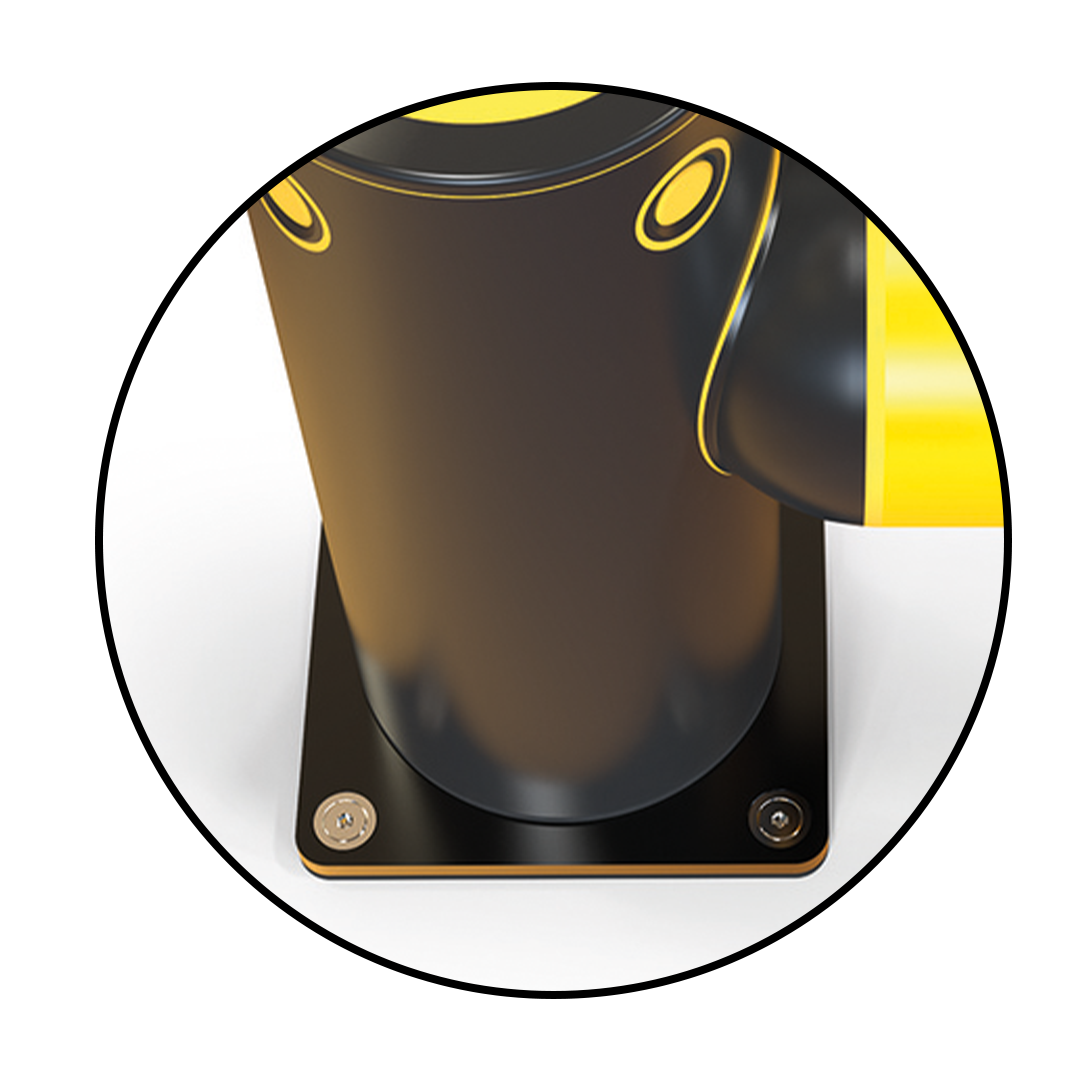

Protective Coating

Zinc nickel, electrophoretic coating on base plates as standard, provides advanced protection against corrosion damage.

No Floor Damage

80% of the impact force is absorbed, transferring just 20% to the floor.

Technical Specifications

Impact Test

Mid Rail Max Energy (Joules)

Impact Angle on 2000mm Post Centres

90°
5,800

67.5°
6,795

45°
11,600

22.5°
39,605

End Post Max Energy (Joules) - 90°

3,700

Mid Post Max Energy (Joules) - 90°

2,700

Material Properties

Memaplex™

Temperature Range

-10°C to 50°C

Ignition Temperature

370°C to 390°C

Flash Point

350°C to 370°C

Toxicity

Not Hazardous

Chemical Resistance

Excellent - ISO/TR 10358

Weathering Stability (Grey Scale)

5/5*

Light Stability (Blue Wool Scale)

7/8**

Static Rating (Surface Resistivity)

1015 - 1016 Ω

* Weathering scale 1 is very poor and 5 is excellent
** Light stability scale 1 is very poor and 8 is excellent
